| Sizes: 28" to 48" | |
| PDCPD | |
| Seat Material: EPDM, FKM, Nitrile | |
| Disc Materials: PVC, CPVC, PP, PVDF |
Isolation valves, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation
| Sizes: 1-1/2" to 14" | |
| PDCPD | |
| Seat Material: EPDM, FKM, Nitrile | |
| Disc Materials: PP, CPVC, PVC, PVDF |
Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation
| Sizes: 16" to 24" | |
| PP, PVDF | |
| Seat Material: EPDM/FKM/Nitrile | |
| Disc Materials: PP/PVDF |
Isolation valves, control valves, chemical processing, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation
| Sizes: 2" to 16" | |
| PVC, PP, PVDF | |
| PTFE back w/Neoprene | |
| Body Type: Ductile Cast Iron |
Isolation valves, control valves, chemical processing, mining
| Sizes: 3" to 6" | |
| Body Materials: CPVC Schedule 80, Natural Kynar, PVC Schedule 80, Red Kynar PVDF | |
| O-ring: FKM or EPDM | |
| 150 psi Service |
| Sizes: 2" to 6" | |
| Type: 563 Wafer Aqua, 567 Wafer, 578 Lug, 365 Lug | |
| 150 psi Service, Bi-Directional |
Water Treatment, Power Plants, Marine, Electroplating, Chemical Process Industry, Automotive Industry, Cooling equipment, Aquariums, Swimming pool construction, Ultrapure DI Water, Hot Ultrapure DI Water
| Sizes: 2" to 24" | |
| Body Materials: PVC, CPVC, GRPP | |
| Liner Material: Viton, FPM, EPDM, Nitrile |
Water & Wastewater Treatment, Aquatic & Animal Life Support Systems, Chemical Processing and Handling, Marine & Corrosive Environments, Mining, Metal Plating & Surface Finishing, Landfills / Environmental Infrastructure, Water / Theme Parks
| Sizes: 2" to 24" | |
| 150 psi Service | |
| Body Material: Ductile Iron | |
| Disc Material: PFA, S.S., Hastelloy, Titanium, UHMWPE |
| Sizes: 1-1/2" to 6" | |
| Body Materials: PVC, GRPP | |
| 150 psi Service |
| Sizes: 2" to 8" | |
| PVC or Polypro | |
| Seats & O-rings: EPDM or FKM | |
| 150 psi Service |
| Sizes: 2" to 12" | |
| 150 psig Service | |
| Made from Durcor® Advanced Fiber Reinforced Composite | |
| Tensile & Compressive Strength Rivals Steel |
| Sizes: 2" to 12" | |
| 150 psi Service | |
| Made from Durcor® Advanced Fiber Reinforced Composite | |
| Tensile & Compressive Strength Rivals Steel |
| Sizes: 14" to 42" | |
| 150 psi Service | |
| Made from Derakane 411 Vinyl Ester Reinforced with ECR Glass Fiber |
| Sizes: 1-1/2" to 60" | |
| Body Materials: PVC, CPVC, Polypropylene | |
| 150 psi Service | |
| Type: Standard, Wafer & Lug |
| Sizes: 3/8" to 4" | |
| Body Materials: PVC, CPVC, PP, PVDF | |
| EPDM, FKM | |
| Body Type: Single Piece, True Union |
Isolation valves, water treatment, water features, fountains, aquariums, landfills, swimming pools, power plants, mining, transportation, chemical processing
| Sizes: 1/2" to 6" | |
| Body Materials: Black Polypropylene, Natural Polypropylene, CPVC Schedule 80, Natural Kynar, PVC Schedule 80, Red Kynar PVDF | |
| O-ring: FKM or EPDM | |
| 250 psi Service |
| Sizes: 1/2" to 6" | |
| Body Materials: PVC, CPVC, PP, PVDF | |
| O-rings: EPDM, FRM, FPM, others on request | |
| Ball Seal: PTFE |
Chemical Process Industry, Life Sciences, Microelectronics, Measurement & Control, Water Treatment, Marine, Food & Beverage, CPI, Non-critical Chemical Applications, Swimming Pools, Laboratory, Water Distribution, Agriculture, Irrigation, Fish Farming
| Sizes: 2 1/2" to 4" | |
| Body Materials: PVC, CPVC, GFPP | |
| 250 psi Service |
Water & Wastewater Treatment & Clean Water technology, Chemical Processing & Transfer, Aquatic & Animal Life Support Systems, Marine & Corrosive Environments, Metal Finishing & Plating, Mining, Commercial Plumping, Water Parks & Features, General Processing, Sodium Hypochlorite Systems, and more
| Sizes: 1" to 6" | |
| 250 psi Service | |
| Ductile Iron Body | |
| Heavy Duty PFA Liner |
| Sizes: 1/2" to 6" | |
| Body Material: Schedule 40 white PVC, Schedule 80 grey PVC | |
| O-ring: PTFE, EPDM, FPM |
Plant water supply and distribution, Wash-water & Recovery systems, Pulp & Chemical Recovery Systems, Water treatment
| Sizes: 3/8" to 4" | |
| Body Material: PVC, CPVC, Natural Polypro, PVDF, with FKM or EPDM | |
| Available in 2-way and 3-way |
Z-vent for sodium hypochlorite, Lock-out/Tag-out, Metering, Characterization, Stem Extensions, and Lateral Reducing connections
| Sizes: 1/2" to 12" | |
| High-Density Polyethylene | |
| Smooth-Bore | |
| Available in SDR 9, 11, 13, 17 |
| Sizes: 1" to 10" | |
| 275 psi Service | |
| Derakane 470 Vinyl Ester Resin Reinforced with Glass Fibers | |
| Tensile & Compressive Strengths Rival Steel |
| Sizes: 1" to 10" | |
| 275 psi Service | |
| Derakane 470 Vinyl Ester Resin Reinforced with Carbon Graphite Fibers | |
| Tensile & Compressive Strengths Rival Steel |
| Sizes: 1" to 10" | |
| 275 psi Service | |
| E-Plus Epoxy Resin Reinforced with Glass Fibers | |
| Tensile & Compressive Strengths Rival Steel |
| Sizes: 1" to 10" | |
| 275 psi Service | |
| E-Plus™ Epoxy Resin Reinforced with Carbon Graphite Fibers | |
| Tensile & Compressive Strengths Rival Steel |

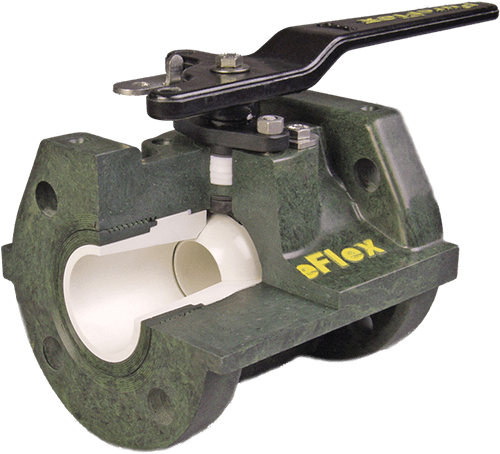

| Sizes: 1" to 10" | |
| Full Vacuum to 275 psig | |
| Advanced Thermoset Resins Reinforced with Graphite Fibers | |
| Y-TZP(Yttria-Partially Stabilized Zirconia) Liner, Seats & Ball |
| Sizes: 1/2" to 8" | |
| Body Material: PVC gray or White, CPVC | |
| Type: True Union 2000, Compact, Single Entry, Utility, CWV Ball Valves, Swing Check Ball Valves |
| Sizes: 1/2" to 10" | |
| Body Material: PVC, CPVC, PP, & PVDF | |
| Diaphragm Materials: EPDM 3-layer EPDM/PVDF/PTFE, Nitrile & FKM also available | |
| Body Type: True Union or Flanged |
Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing
| Sizes: 1/4" to 1" | |
| Models: Manual, Pneumatic | |
| Connections: Flare, S-300, and Customs |
| Sizes: 1-1/2" to 6" | |
| 150 psi Service | |
| 60 Mil Double Nexus® Reinforced | |
| Body Material: Composite |
| Sizes: 1/2" to 6" | |
| Body Materials: PVC, CPVC, ABS, PP-H, PP-n, PVDF |
Chemical Process Industry, Life Sciences, Microelectronics, Water Treatment, Food & Beverage, Measurement & Control, Applications with high viscosity & solid content
| Sizes: 1/2" to 12" | |
| 200 psi Service | |
| Body Materials: Ductile Iron, Carbon Steel, Stainless Steel |
| Sizes: 1/2" to 2" | |
| 150 psi Service | |
| Body Materials: PVC, PVDF, Polypropylene, or PFA |
| Sizes: 1/2" to 8" | |
| 200 psi Service | |
| Body Materials: Ductile Iron, Carbon Steel, Stainless Steel |
| Sizes: 1/2" to 12" | |
| 200 psi Service | |
| Body Material: Ductile Iron, Carbon Steel, Stainless Steel |
| Sizes: 1/4" to 3" | |
| Body Materials: PVC, CPVC, PVDF, PTFE | |
| 125 psi Service |
Relief, By-Pass, Back-Pressure Regulator, Back-Pressure Valve, Anti-Siphon
| Sizes: 1/2" to 2" | |
| Body Materials: PVC, CPVC, & Polypropylene | |
| Style: True Union Socket/Thread & SR Thread, Spigot, Flanged |
| Sizes: 3/12" | |
| Body Materials: PVC | |
| Seat & Seals: EPDM, FKM |
Tank inlets/outlets; preventing back-flow into a pump; one-way mixing; water hammer mitigation; pressure balancing; process intakes. In the following industries: chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants
| Sizes: 3/4" to 8" | |
| Body Materials: HI-PP, PP, PVDF | |
| Seat & Seals: EPDM, FKM, PTFE | |
| Models: Flanged Connection |
Tank inlets/outlets; preventing back-flow into a pump; one-way mixing; water hammer mitigation; pressure balancing; process intakes. In the following industries: chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants
| Sizes: 1/2" to 2" | |
| PVC, CPVC, PP & PVDF | |
| Seat & Seals: EPDM, FKM, Nitrile | |
| Models: Socket, Threaded, Flanged, Butt End |
Chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, power plants
| Sizes: 1/2" to 4" | |
| Body Materials: Polypropylene, CPVC, PVC, PVDF, Kynar | |
| O-ring: FKM or EPDM | |
| 150 psi Service |
| Sizes: 2" to 6" | |
| 150 psi Service | |
| Extra Heavy Wound Filament Wall | |
| Liners: Epoxy Resin, Vinyl & Novolac Vinyl Ester Resin, Furan Resin |
| Sizes: 3/8" to 12" | |
| Body Materials: PVC, CPVC, ABS, PP-H, PVDF | |
| Style: Ball Check, Angle Seat, Wafer |
Chemical process industry, Water Treatment, Microelectronics, Food & Beverage, Cooling processes, Marine
| Size: 1/4" to 20" | |
| Body Materials: PVC, CPVC, PP, PVDF | |
| Ball, Y-Check, Swing, Wafer |
Water & Wastewater Treatment, Chemical Processing, Food & Beverage, Swimming Pools & Water Parks, Aquaculture, Aquarium & Zoo service, Pharmaceutical, Pulp & Paper, Landfill Service, Marine & Corrosive Environments, Metal Finishing & Plating
| Sizes: 1" to 6" | |
| Full Vacuum to 250 psig | |
| UV Resistant Epoxy Coating | |
| Heavy Duty PFA Lining |
| Sizes: 1/2" to 8" | |
| Body Materials: PVC | |
| 232 psi Service |
| Sizes: 1/4" to 4" | |
| Body Materials: PVC, GPP, PVDF, CPVC, Polypropylene, PTFE, PVDF | |
| Type: Normally Closed, Low Pressure |
| Lightweight Rugged and Corrosion Resistant | |
| Fiberglass, Carbon Graphite Reinforced Vinyl Ester, or E-Plus™ Epoxy Material | |
| Ball & Seat Manufactured from Virgin PTFE |
| Sizes: 3" to 12" | |
| Glass Fiber-Reinforced Vinyl Ester Resin Body | |
| PTFE or Viton® Seat Options |
| Sizes: 1/2" to 8" | |
| Body Materials: PVC gray or White, CPVC | |
| Style: Industrial Swing Check, Utility Swing Check & Spring Check, In-line Adjustable Spring, Diaphragm Check Valve, Butterfly Check Valve, Y-pattern Check Valve |
| Sizes: .5" to 8" | |
| Full Vacuum to 250 psig | |
| One-Piece A395 DCi Body | |
| One-Piece Heavy-Duty TFM Liner |
| Sizes: 1/2" to 6" | |
| Body Materials: PVC, CPVC | |
| Type: Socket/Thread, Flanged |
| Sizes: 1-1/2" to 4" | |
| Body Materials: PVC, PP | |
| Operation: Handwheel, electrical actuation (1-1/2" to 3") |
Manual control valve with rising plug. Very good flow control with a linear flow characteristic. Ok resistance to suspended solids and not recommended for use in lines with possible debris.
| Sizes: 1/4" to 1" | |
| Body Materials: PVC Schedule 80 | |
| O-ring: FKM | |
| 150 psi Service |
| Sizes: 2-1/2" to 6" | |
| Body Materials: PVC, CPVC | |
| 150 Psi Service |
| Sizes: 1/2" to 4" | |
| Body & Bonnet: PVC | |
| Seals: EPDM |
Chemical processing, aquariums, mining, water treatment, swimming pools, salt water, semiconductor
| Sizes: 1/4" to 3" | |
| Flow: 1/4 - 12 gpm | |
| 15 to 120 psi Service |
| Sizes: 1/8" to 1" | |
| Flow Direction: Straight, Vertical Angle, Horizontal Angle | |
| Body Material: PPN, PVDF, PFA O-ring, FKM |
| Sizes: 1/4" | |
| Body Materials: CPVC Schedule 80, PVC Schedule 80 | |
| O-ring: FKM | |
| 150 psi Service |
| Sizes: 1/4" to 3/8" | |
| Body Materials: PP-H, PVDF | |
| 150 psi Service |
| Sizes: 1/8" to 1/2" | |
| Body Materials: PP, PVDF, PFA, PTFE, PPN | |
| O-ring: FKM | |
| Type: Ball, Needle |
Throttling, slurry lines, chemical processing, bleach plants, aquariums, mining, water treatment, landfills, swimming pools, semiconductor manufacturing
| Size: 1/4" to 1" | |
| Type: Pinch Valves, Pressure Regulators, Flow Control Packages |
| Sizes: 1/4" to 1" | |
| Materials: PP, PVDF, PFA, PTFE, FKM | |
| Type: Multi-port manifold Valve, Sampling Valve, Ball Valve |
| Sizes: 1/2" to 4" | |
| Body Materials: HI-PVC | |
| Operation: Handwheel, electrical actuation (1-1/2" to 3") |
Full port valve with a sealing plug that lifts fully out of the flow path when the valve is open. Includes a drain plug at the base of the valve for cleaning out accumulated sediment. Minimum head loss and high resistance to clogging due to debris. Good resistance to suspended solids and poor flow control.
| Sizes: 2-1/2" to 4" | |
| Body Materials: PVC, CPVC, PVDF, PVDF-HP | |
| EPDM, PTFE/EPDM |
Water treatment, Chemical Process, Microelectronics
Each solenoid valve is field interchangeable for use in either double acting (4-way) or spring return (3-way) rotary actuators and is available in single coil, dual coil, or 3- position configurations (open centers, closed centers, or centers-in-pressure)
Air Release Valves provide high capacity venting of gas at system startup while Degassing Valves vent trace amounts of gas as it occurs during system operation. Vacuum Breakers open automatically in response to minimal vacuum to prevent unwanted siphonage or collapse of storage tanks. Plast-O-Matic degassing vent & vacuum breaker valves automatically seal bubble tight when not in use; air release & degassing valves automatically reseal when liquid fills the valve.
| Size: 1/4" - 1" | |
| Type: Normally Closed, Normally Open, 3-Way Solenoid Valves |
For unique or unusual applications, be it size, flow, pressure, function, or purpose, Plast-O-Matic has the engineering and lean manufacturing capability to provide custom solutions as you need them. From minor modifications to completely new designs, Plast-O-Matic has created more one-of-a-kind corrosion resistant and ultrapure valves and controls than any other manufacturer. Contact your distributor, regional representative or our Technical team in Cedar Grove NJ to discuss your needs.
| Sizes: 1/4" to 2" | |
| Body Materials: PVC, CPVC, PVDF, PTFE, Natural Polypropylene | |
| 125 psi Service |
Asahi/America's pneumatic and electric actuators have pushed the state-of-the-art since 1987. Today's offerings have added numerous features and material choices to accommodate the broadest range of applications. We have been the principle pioneer of corrosion resistant thermoplastic valves, actuation and pipe in the United States, providing a broad product line, extensive engineering and custom design services.
Can install a variety of valve accessories to meet most industry specifications such as explosion-proof and hazardous area. Available in Pneumatic and Electric.

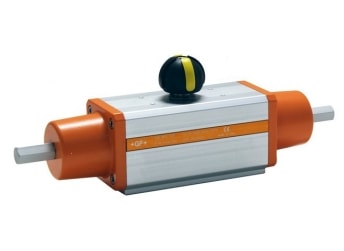

Complete range of actuators and accessories for ball and butterfly valves for your critical installation requirements. Available in Pneumatic or Electric
Automation is an ideal solution for precise control of many valves in a system, when valves are remotely located, or when the process requires constant monitoring and adjustment.
Positioning equipment to control the position of a valve such that a given process will achieve certain desired flow parameters. An example of this type of positioning control will include the mixing of hot and cold water, such that a specified downstream temperature requirement is achieved.
| Material: Technopolymer, Aluminum, Stainless Steel, Explosion Proof Aluminum | |
| Type: Mechanical, Proximity, Inductive |
Actuated Ball Valves feature trunnion safety design and dual sliding seats for ultra-smooth operation and repeatable bubble-tight shutoff with an incredibly long cycle life. Available 2-way and 3-way, in 3/8'- 4' sizes. Available in Air & Electric.
| Sizes: 1/2" to 42" | |
| Type: Rack & Pinion, Vane |
| Full 360° Unobstructed View | |
| 150 psi Service | |
| Lexan® Impact Shield | |
| Unique PTFE/Viton® Envelope Type Gasket |
| For Ball Valves up to 6" | |
| Latches & Lockable in Open / Close Positions |
Valve lockouts are offered to prevent unauthorized use or operation of a valve in a piping system. Can be used with up to 3 locks.
Hayward offers basket strainers and y-strainers to strain particulate that may clog or damage process fluid pipelines.
Available in PVC, CPVC, GFPP and Eastar® Up to 2 in. sizes have a socket and threaded end connections. Each strainer comes with a standard plastic basket.
| Full 360° Unobstructed View | |
| 150 psig Service | |
| Lexan® Impact Shield | |
| Energized Seat Design: PTFE/Viton® Energizer Gasket |
| Ideal for Fluid Motion, Flow & Color Inspection | |
| Rugged Ductile Iron Housing | |
| Thick Borosilicate Glass for Impact |
| Reading scale up to 250mm | |
| Stainless Steel Casing | |
| Connections: Horizontal, NPT, In-line FNPT, Flange |
Low-Flow & Gas Purges, Borosilicate Glass metering Tube
| Reading scale up to 250mm | |
| Magnetically Coupled Dial Type Display or Detachable, Direct Reading Scale | |
| 1200 psi Service | |
| Connections: Output, NPT, or Flanged |
Low-Flow, High-Pressure Applications
| Reading scale up to 250mm | |
| Meter Material: Acrylic, Polysulfone, or PVC | |
| Connections: Horizontal, NPT, In-line FNPT, Flange |
Low-Flow & Gas Purges, Borosilicate Glass metering Tube, Stainless Steel Frame with Horizontal Connections
Max-Air Technology offers two primary types of gear operators for use with quarter-turn valves; a manual gear, and a declutchable gear. Both types are designed with a broad output torque range and are generally designed for use with ISO 5211 valve mounting interfaces, but not required.
| Sizes 1/2" to 8" | |
| For safe, positive indication of flow and clarity of corrosive or ultra-pure liquids. |
| Translucent Thickwall Extruded FEP | |
| Will Not Impart Any Taste, Color or Odor to Fluid Media | |
| Safe & Unbreakable | |
| Zero Corrosion Rate |
